Factoria Cultural Madrid

Adaptive Reuse Design for a Creative Industries Incubator

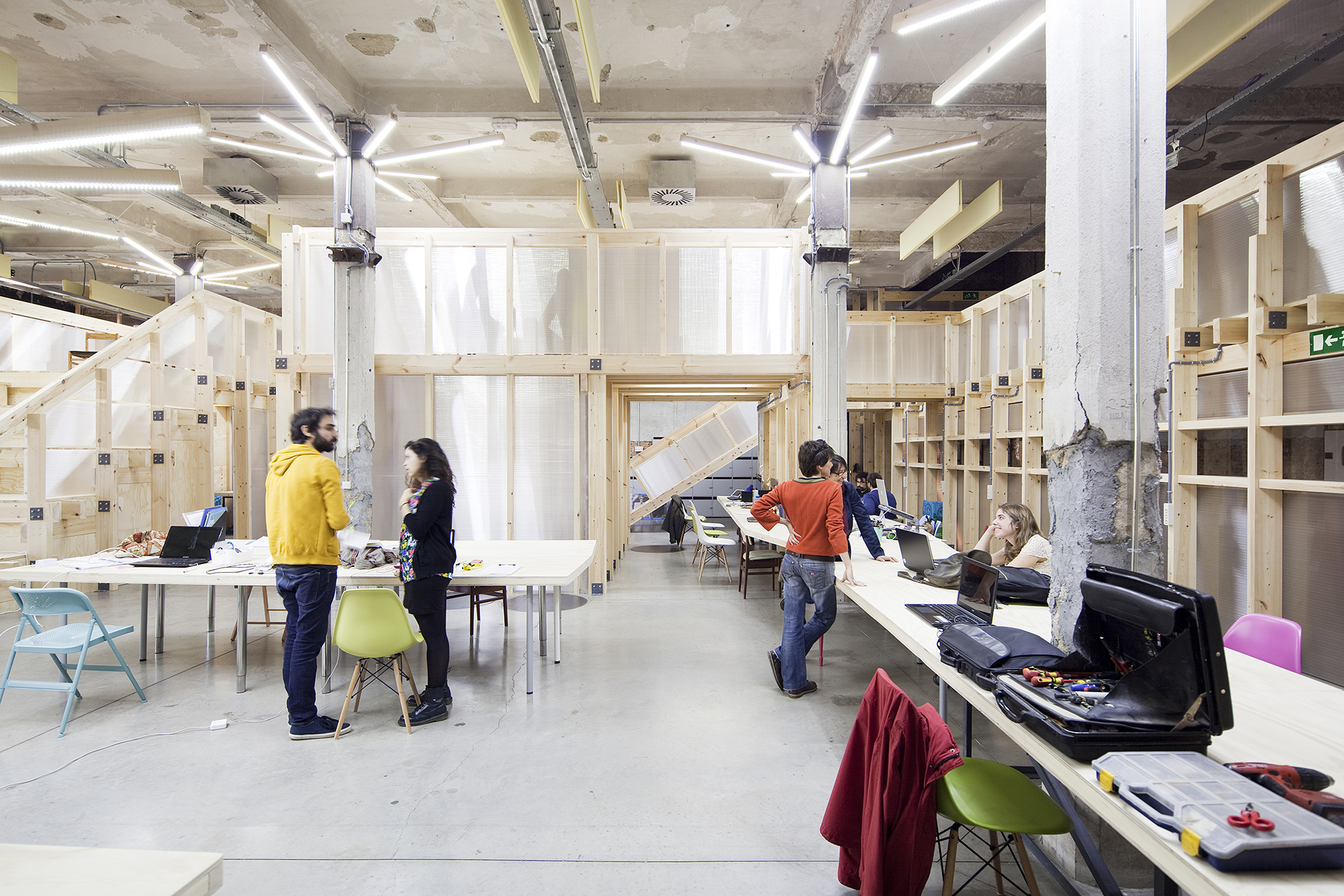

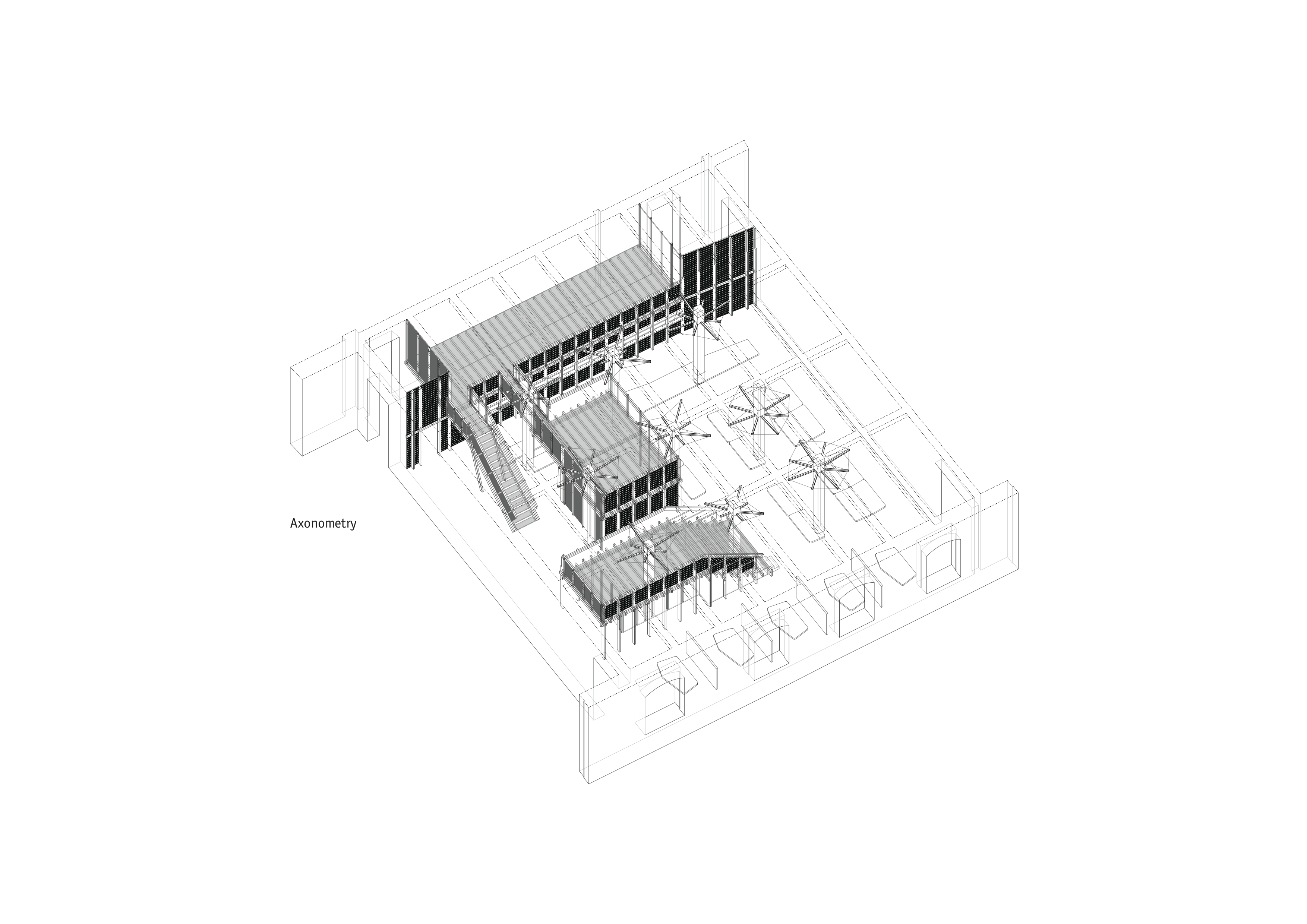

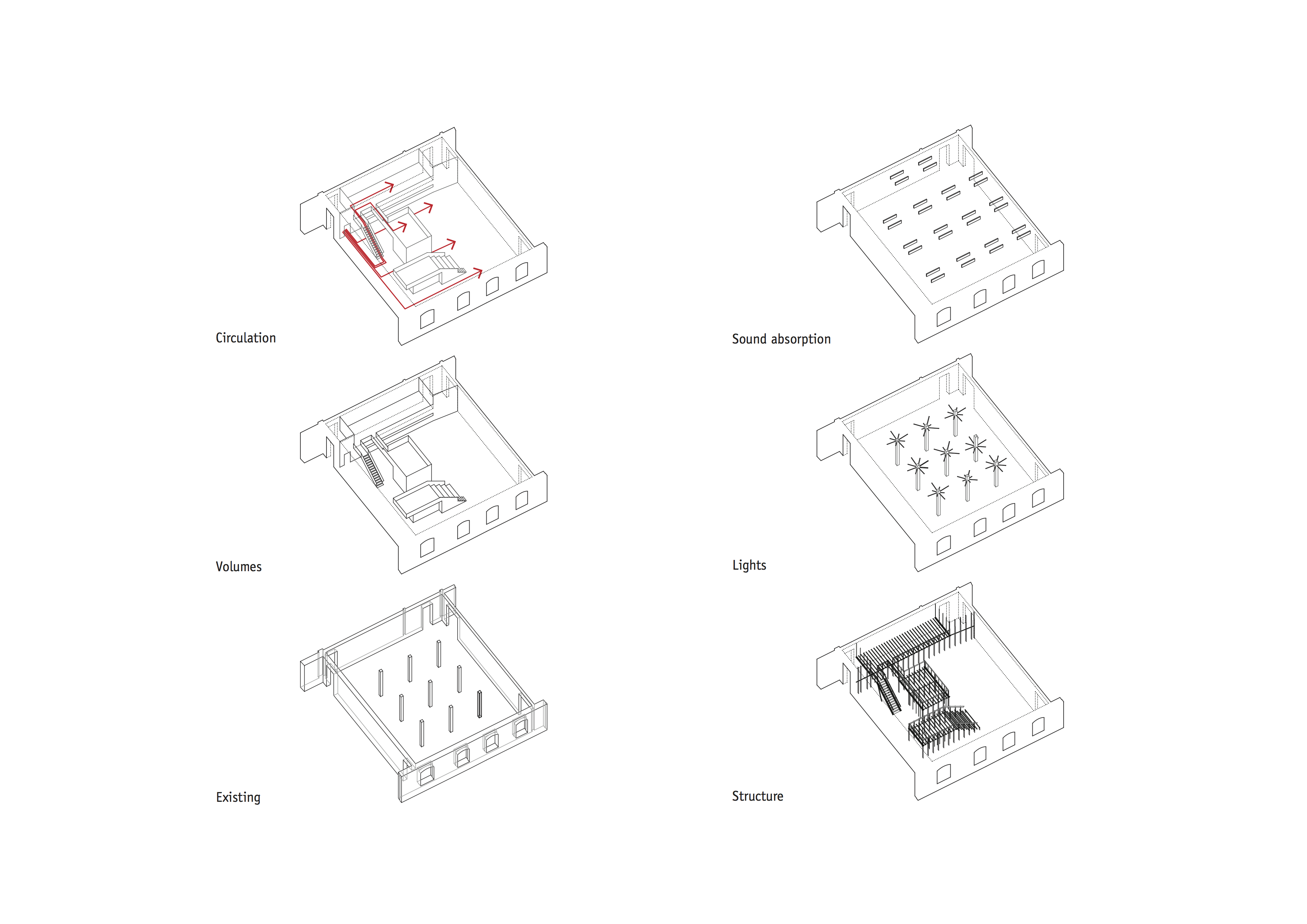

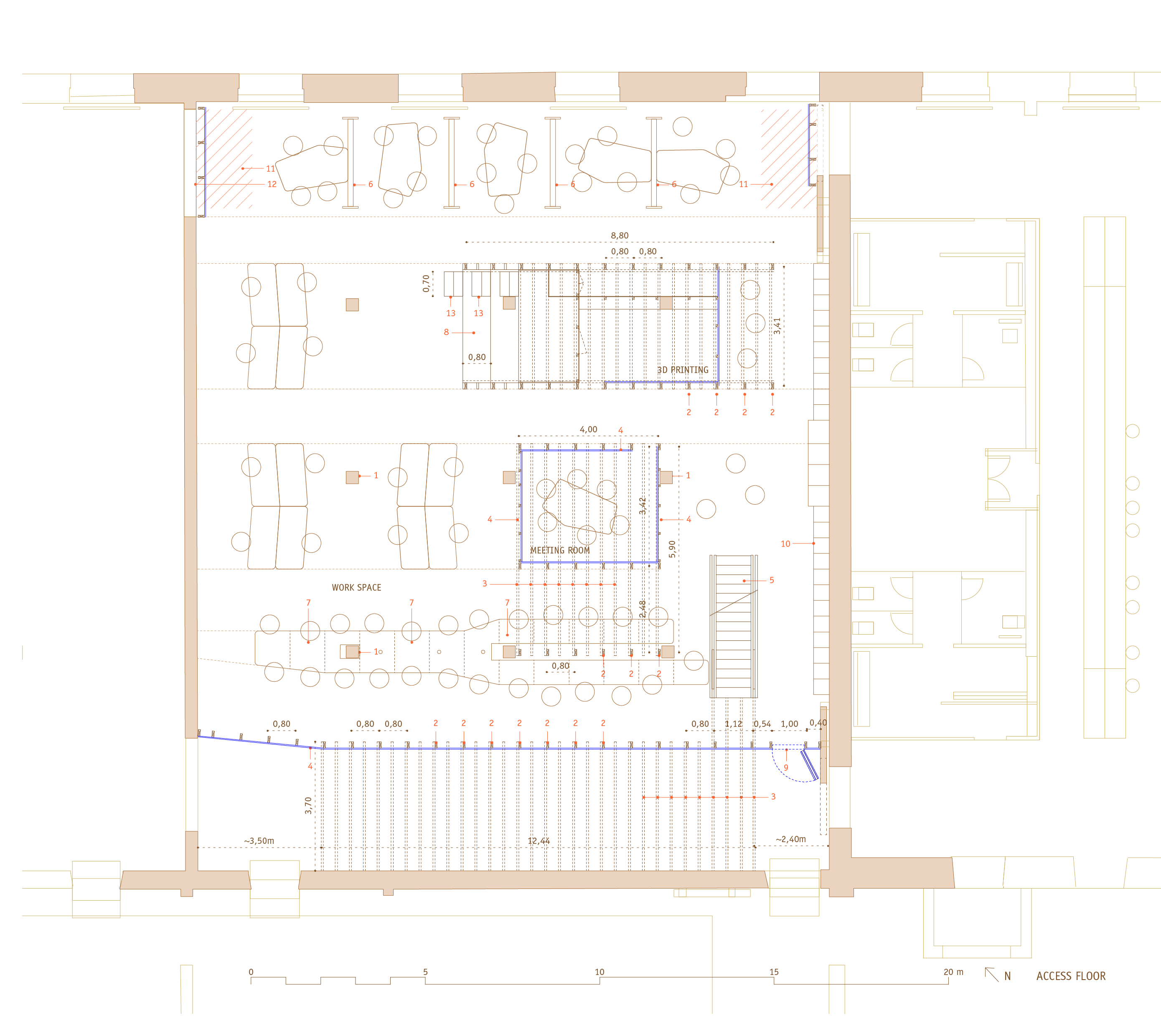

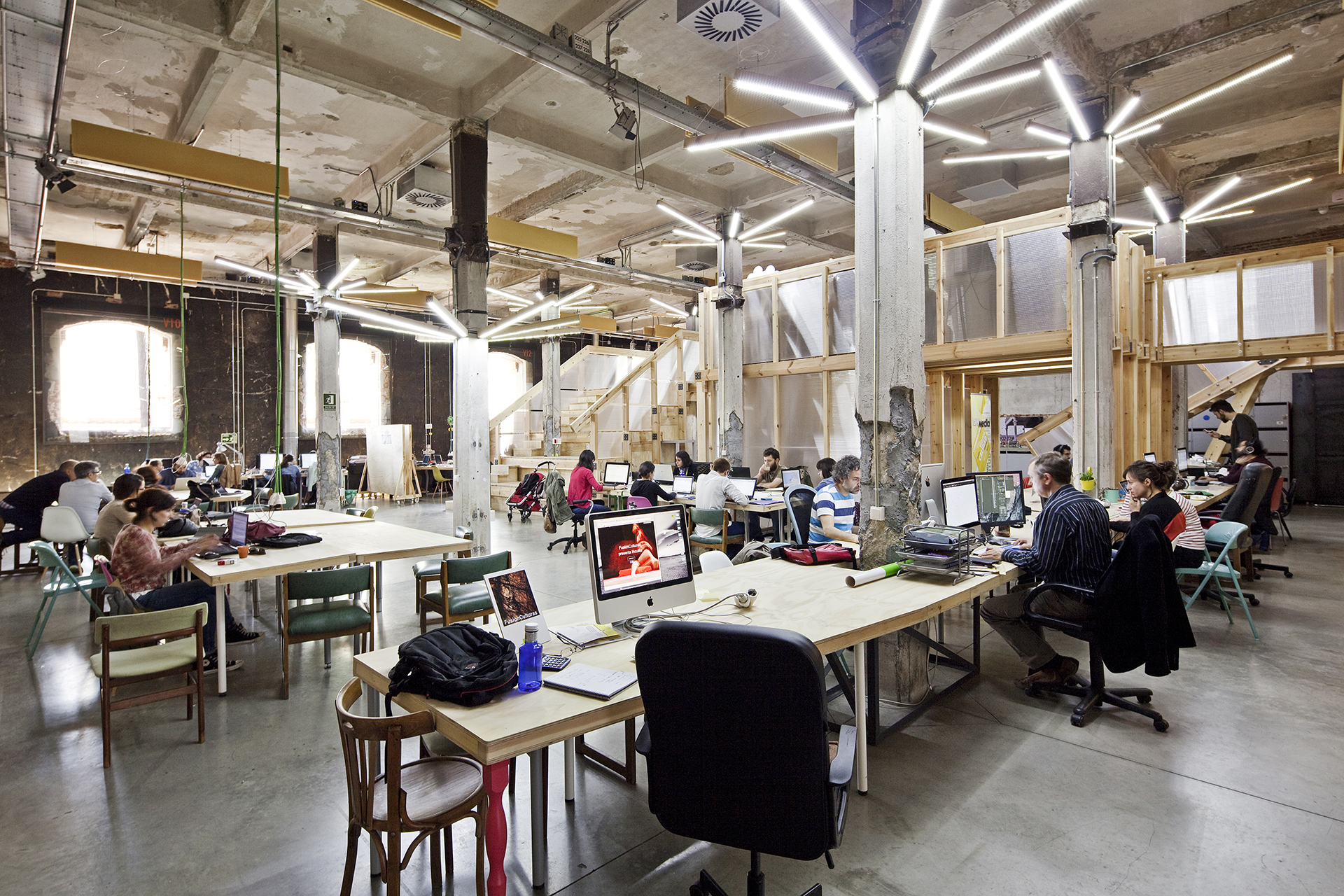

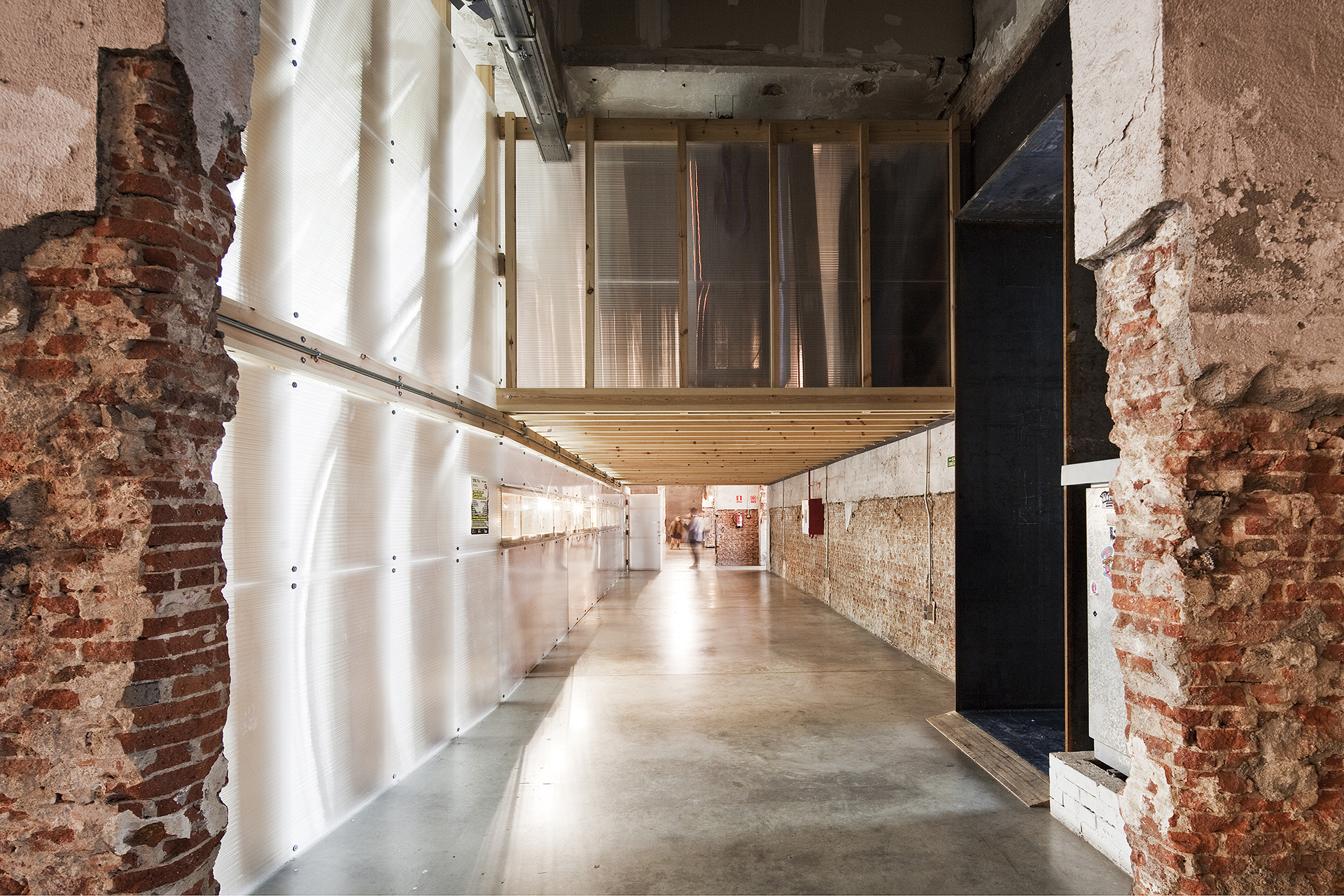

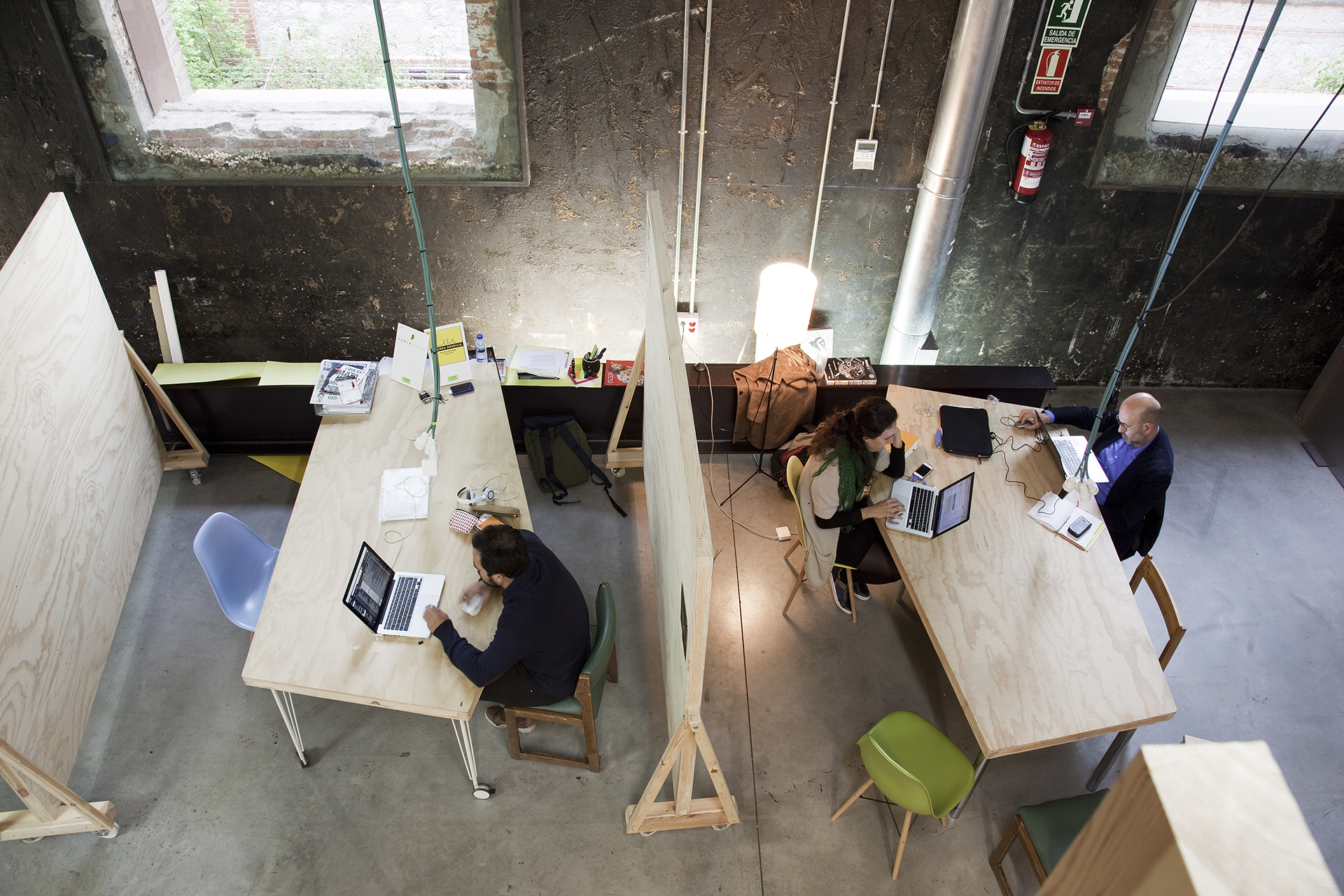

Factoría Cultural is the adaptation of a hall in Matadero Madrid to house an incubator of creative industries start-ups. We used very few, cheap, and easy to install materials, and we tried to achieve with them as many different and distinct work areas as possible, adapted to different needs. Three volumes near the entrance organize the space, folding and compressing the circulations around it. This creates a gradient, from compact to expansive, from busy to silent, that helps achieve variety in workspaces. In a little less than one month we built a reversible, vacuum-packed, 105-eur/m2 work, adaptable to the multitude of situations the client asked for.

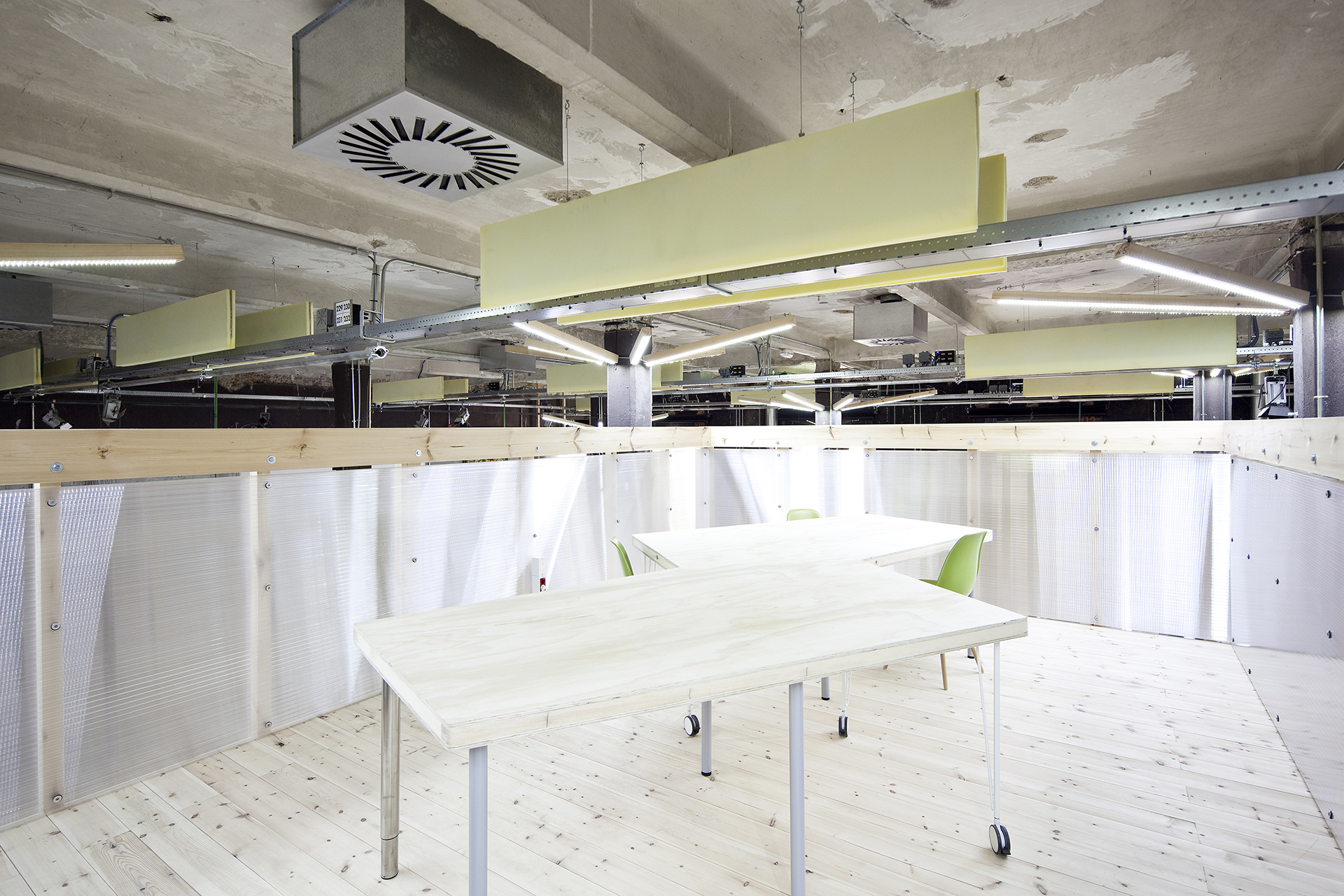

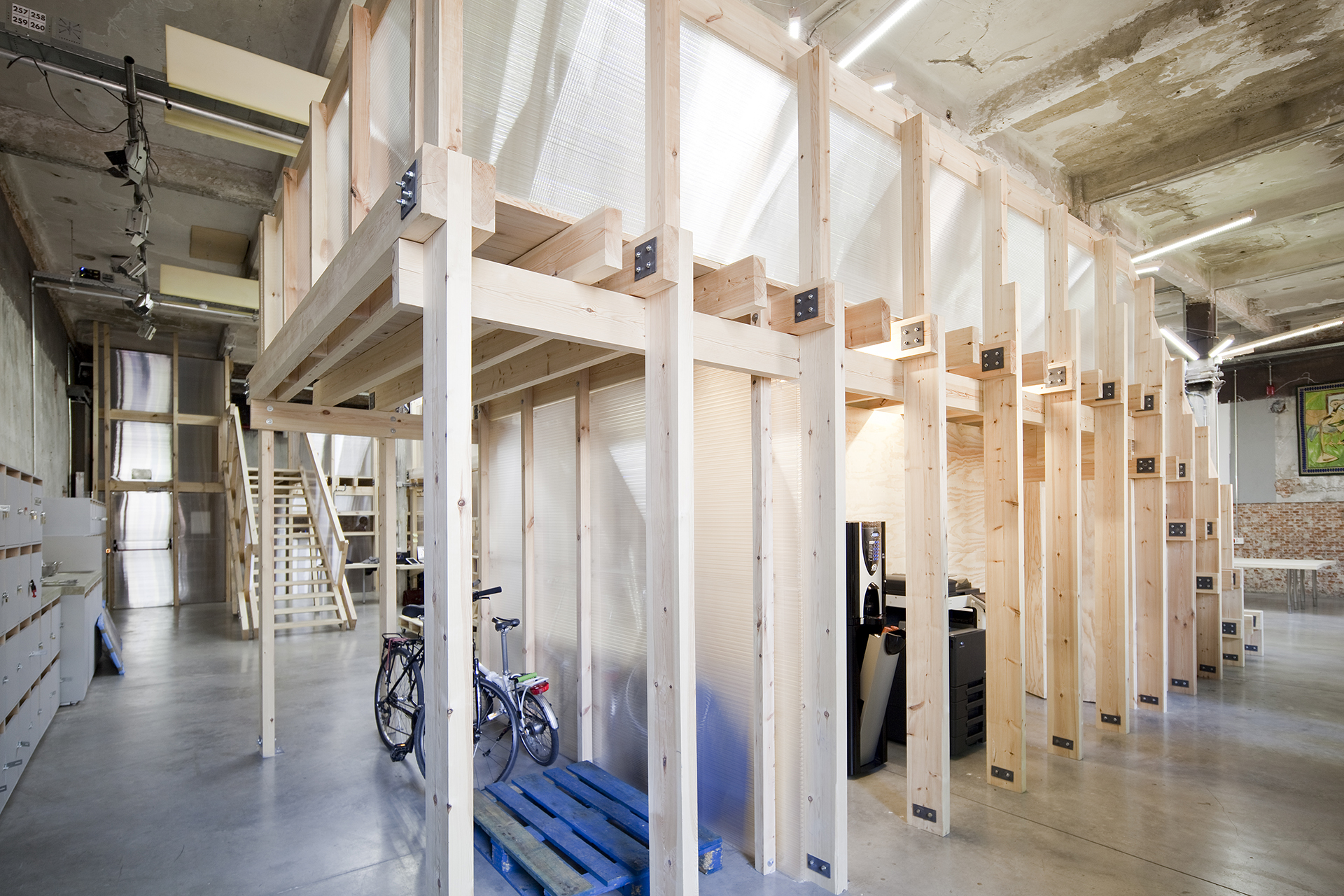

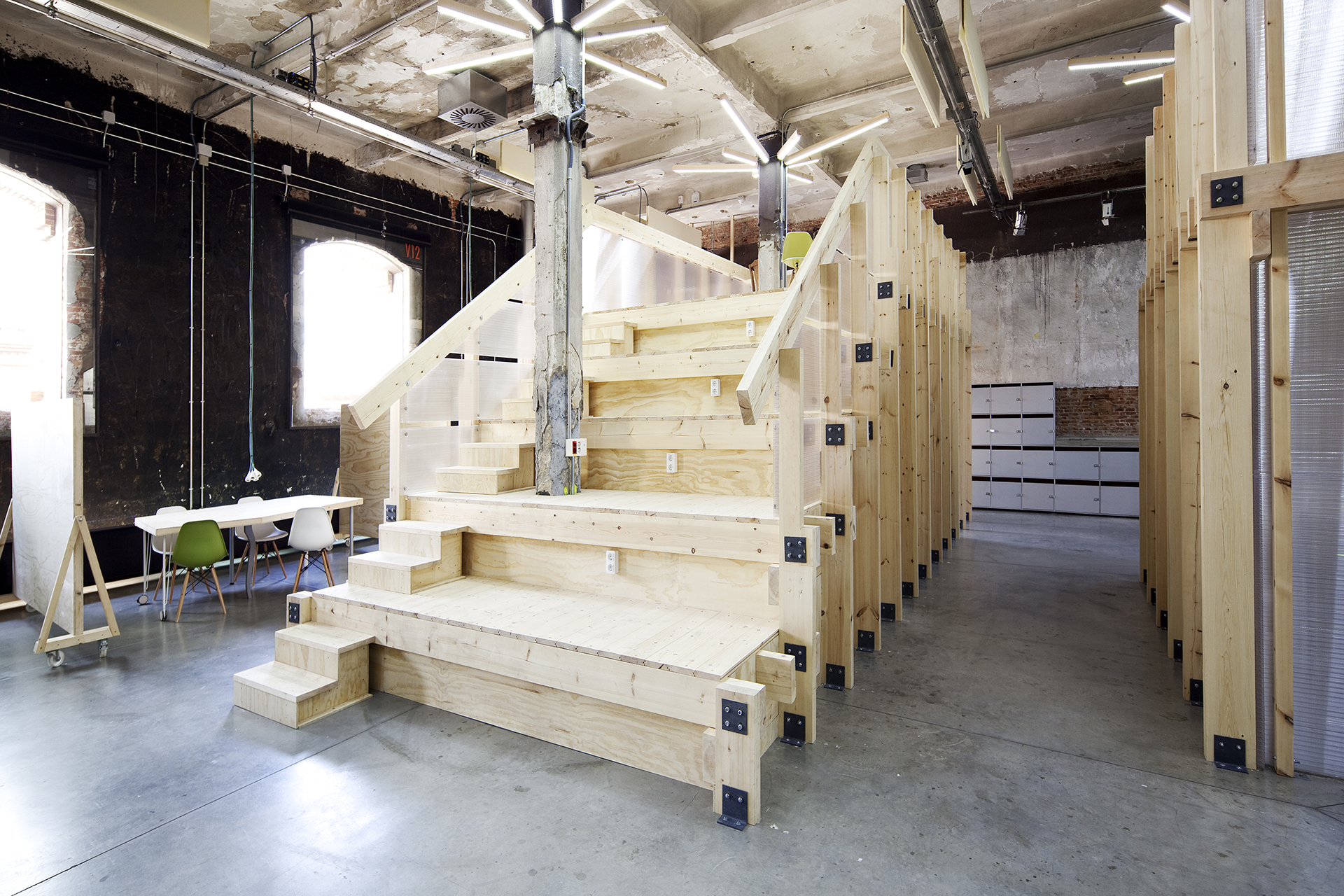

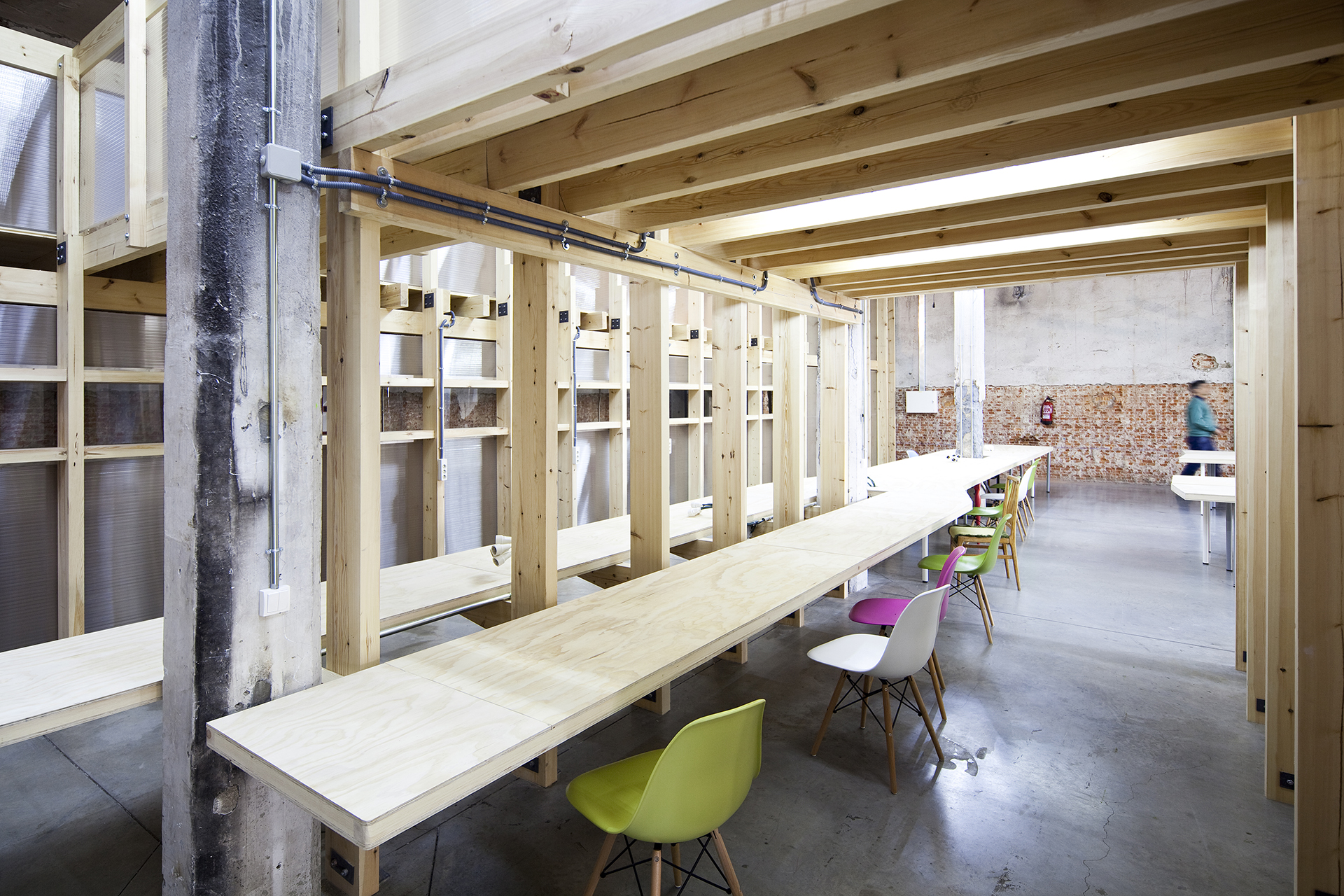

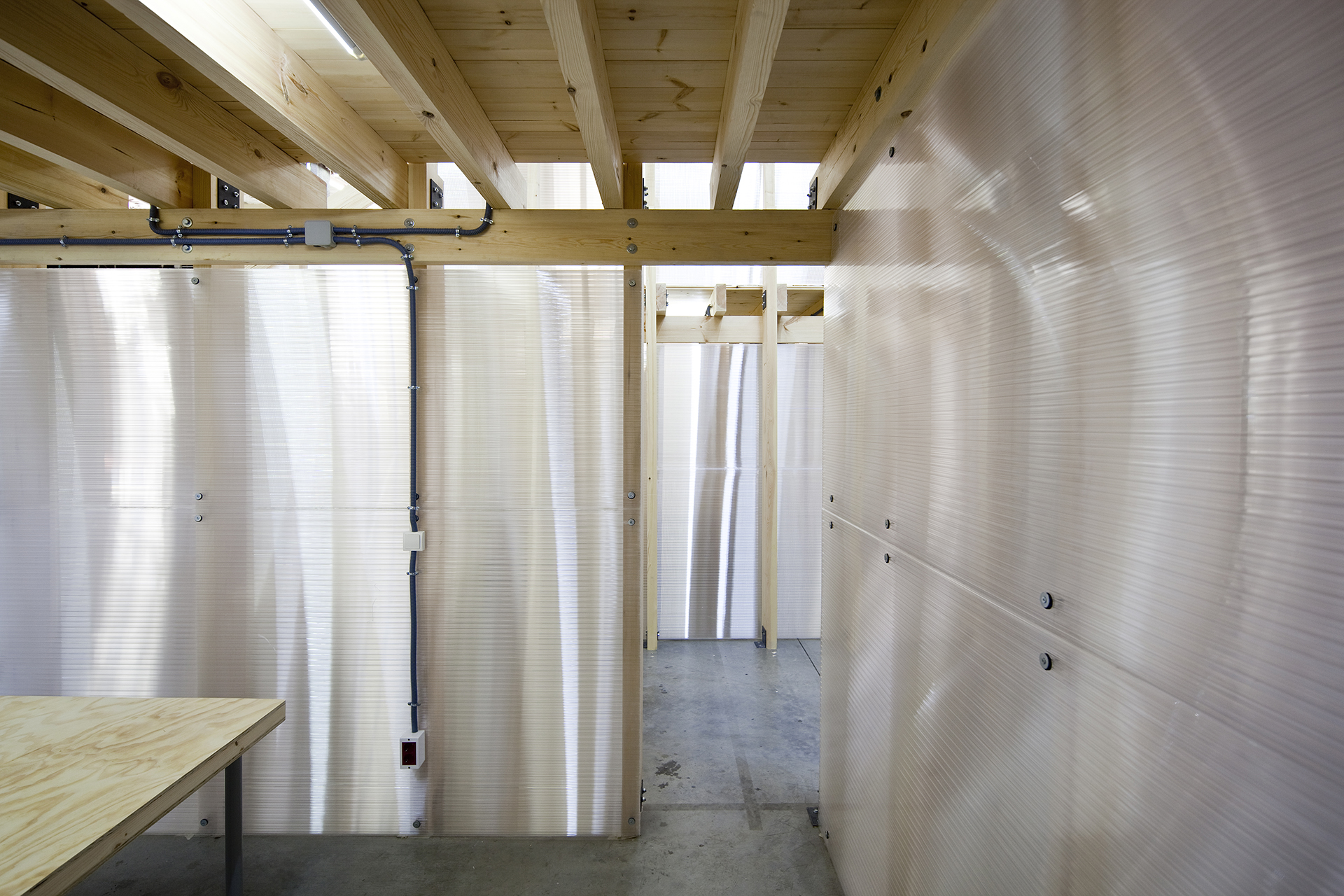

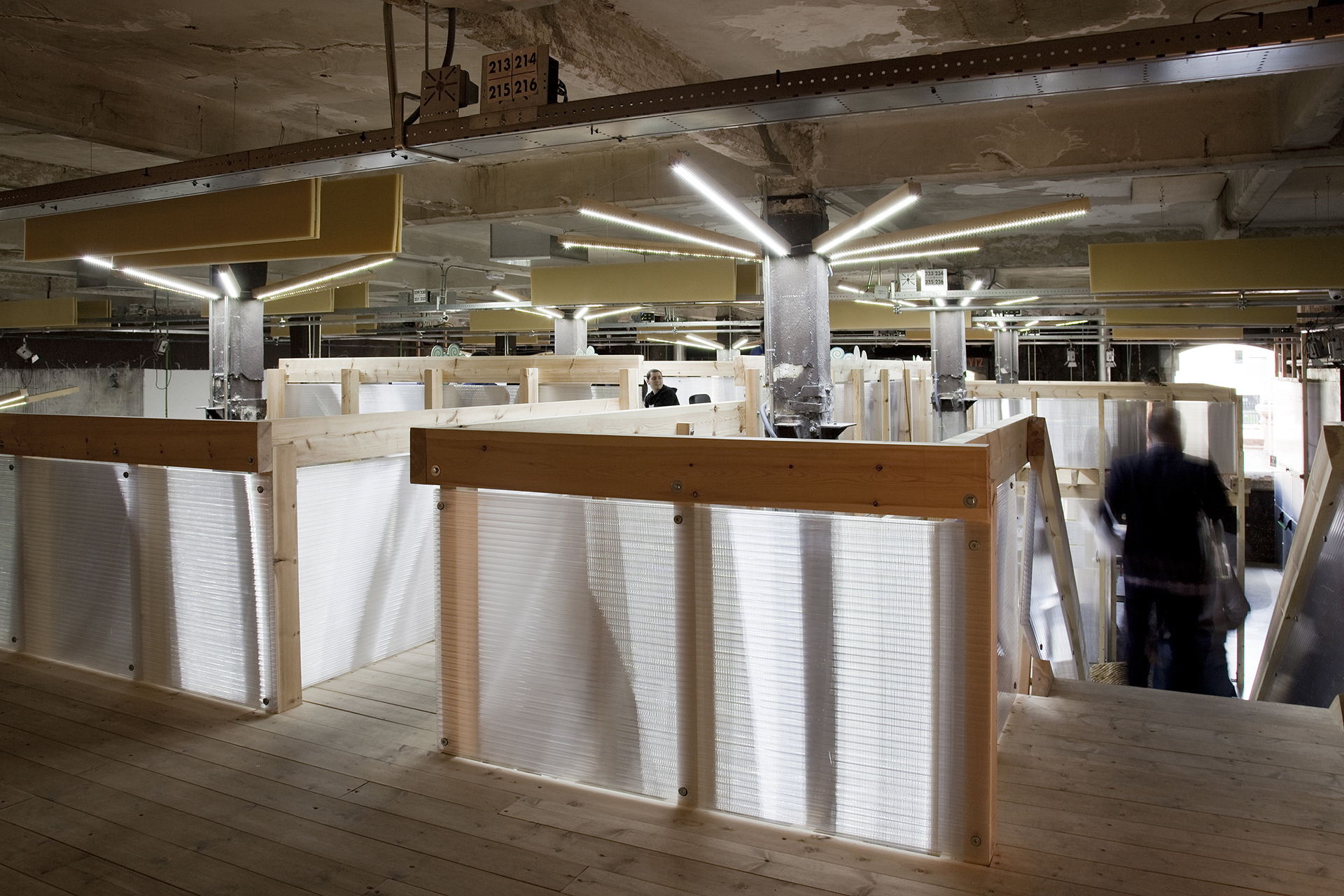

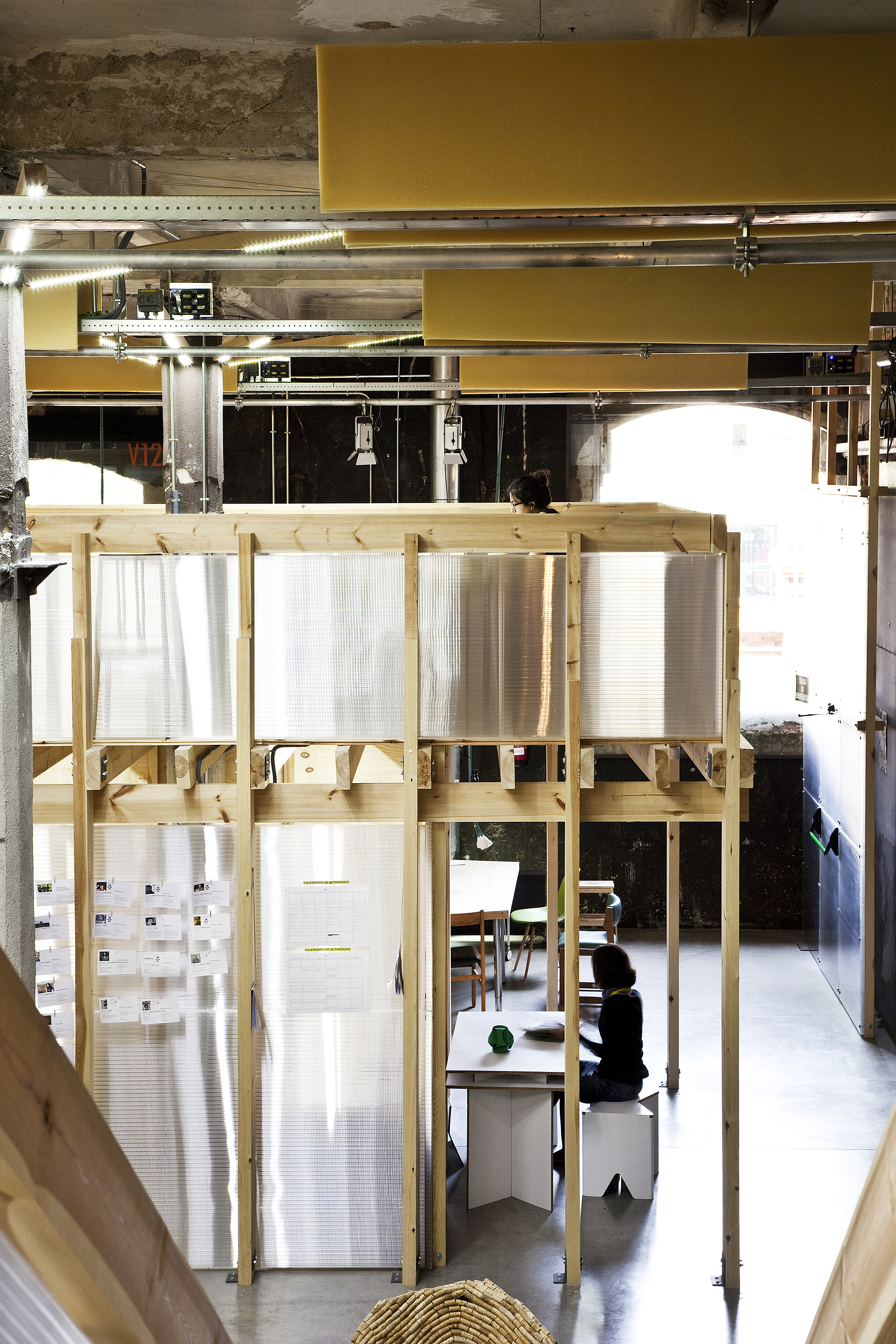

To house the needed 120 workspaces in a 399 sq. m. floor area (that needed to be further reduced to 340 sq. m. in order to maintain a public pass-through) was impossible, unless we found more space using the height of the hall. This created additional problems since there was not enough money to achieve the construction of a second floor by traditional means. We decided to use very simple building systems: the cheapest local pine lumber, all in the same standard size, which simplified the supply and construction of the structure, and multi-wall polycarbonate, very lightweight and in large sheets, which allowed for the walls to be finished in just one day. We were able to achieve 85 more sq.m and crucially to split functions in two levels, which allows for more flexibility in use that the client is now making very good use of.



Client: Factoría Cultural Matadero Madrid  (FCMM)

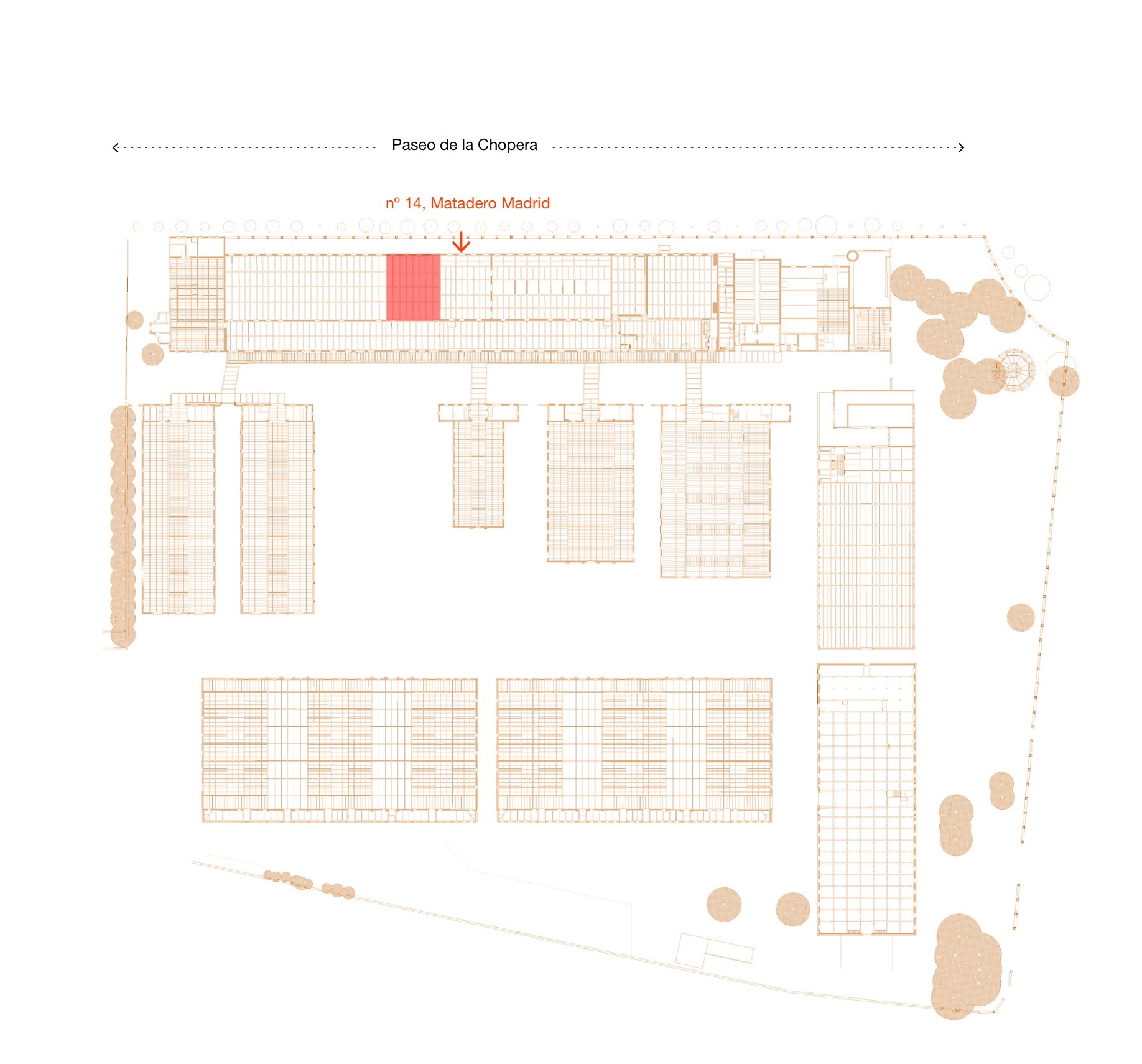

Location: Paseo de la Chopera 14, Madrid

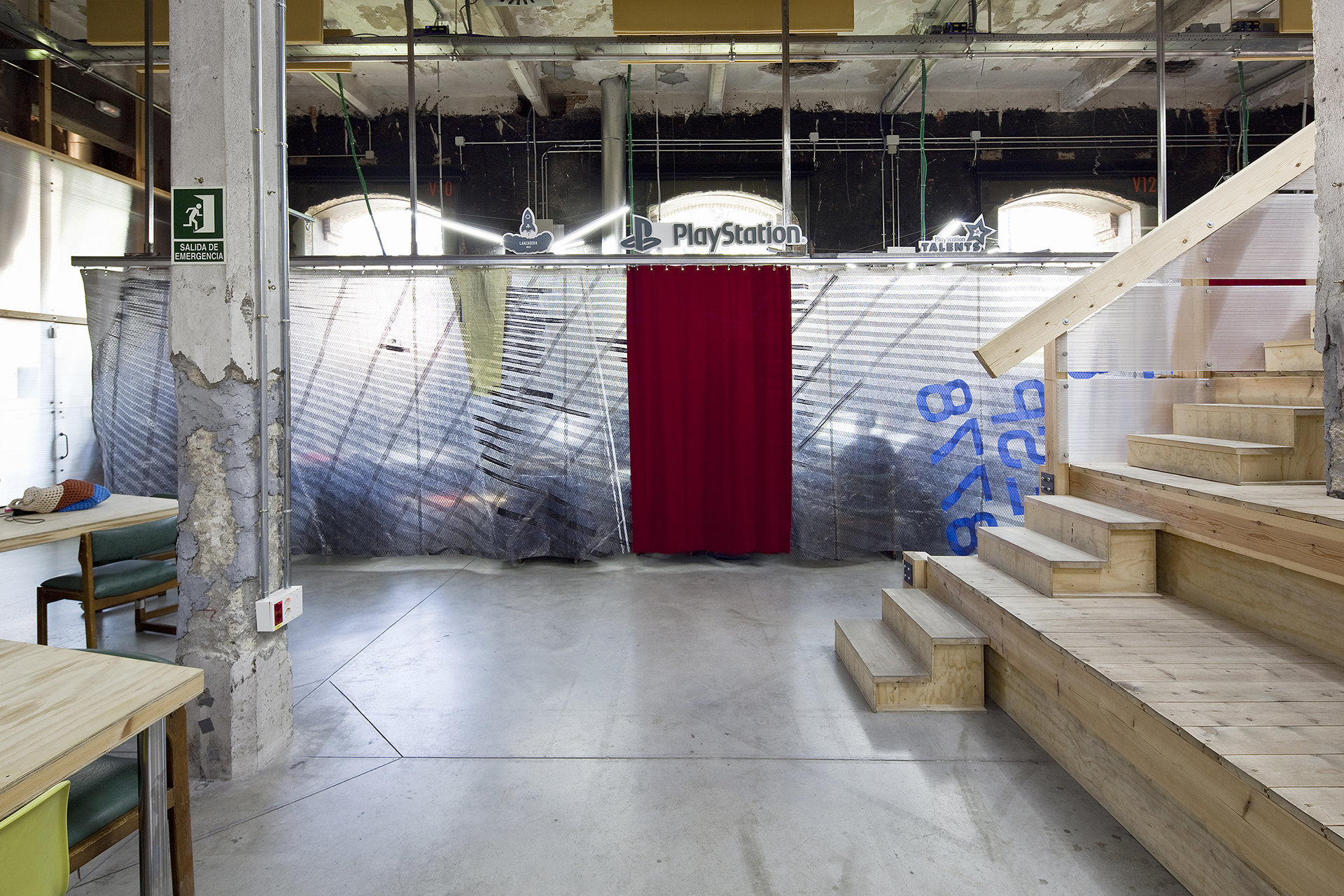

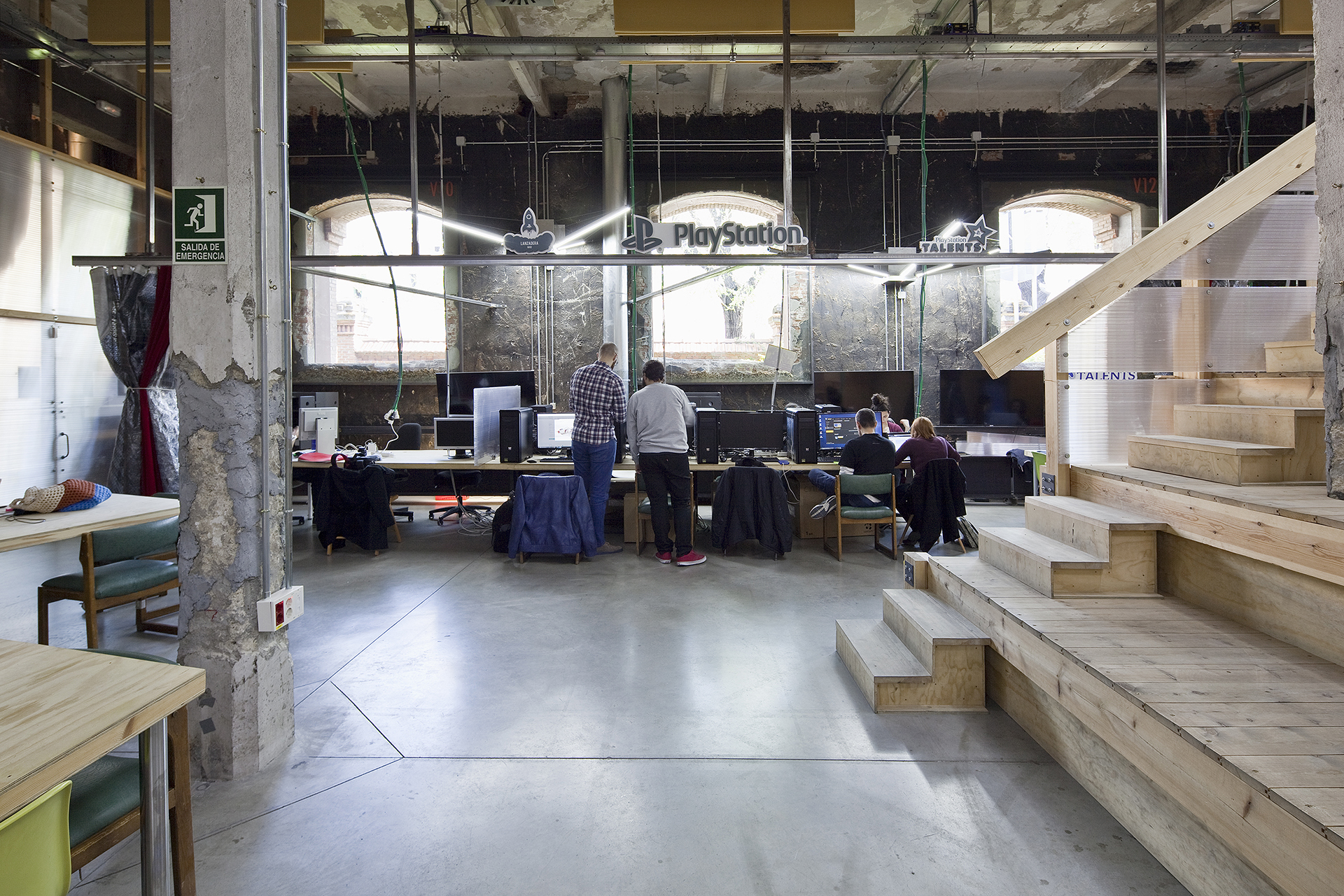

Completion date: 2014 (Factoría); 2017 (PlayStation adaptation)

Gross floor area: 484 m2, Cost: 105 eur/m2; Total cost : 51.000 Eur

Builder: Dulsberg SL, Structure: MOZ

Photography: Simona Rota
